WEINIG Powermat 700: The new generation of moulding and planing

Frontansicht WEINIG Powermat 700

With the introduction of the Powermat series in the year 2004 WEINIG began a new era for planing and profiling. Now, with the Powermat 700 the next generation has arrived; offering undreamt-of possibilities.

The Powermat 700 is designed with a revolutionary new operating concept which no other moulder can offer. The result: improved ease of operation and very short setup times offer the highest degree of flexibility. With these outstanding qualities the new Powermat is the perfect response to the market demands of today and sets a new standard for four sided processing.


Technical Details

Operating concept Comfort Set

The new operating concept Comfort Set comprises a great number of wrench-free adjustments for pressure and guiding elements which can be performed quickly, accurately and without error. With features like this the machine operator will experience a new degree of comfort in performing the moulder setup like he never experienced before. The final proof of the new setup procedure can also be seen in the quality of the products you produce.

Performance

With 7,000 rpm spindle speed in standard the new Powermat 700 offers even more performance. This means more linear production every day without sacrificing high surface quality. Compared to conventional moulders, the production increase is up to 15%.

The option of 8,000 rpm spindle speed allows an even higher increase, which perfectly meets the current requirements in terms of productivity and cost effectiveness.


Options for extension

PowerLock

At the point where the cutting edge meets the work piece for cutting is where surface quality is determined. Precision tools are therefore essential. However, even the best tool needs spindles with perfectly true running accuracy.

Learn more


WEINIG PowerCom PLUS

PowerCom Plus: Networked with your environment

Extremely high performance yet surprisingly simple - that is PowerCom Plus, the top solution for management and work organization of your Powermat 700.

Learn more

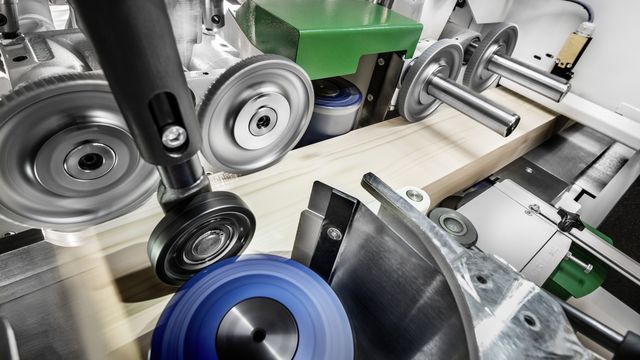

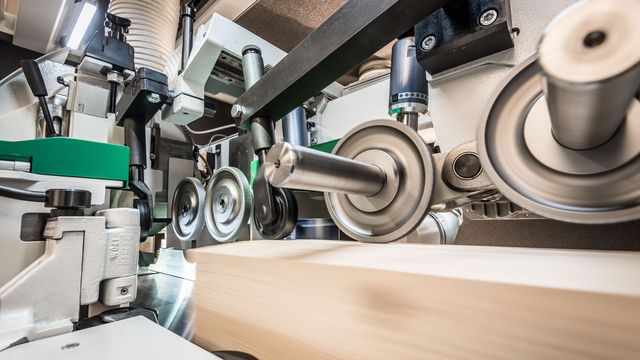

Pressure roller moving with the left spindle

Pressure elements and guides are responsible to guide the work piece smooth and safe through the machine. Therefore, they need to be setup properly. In this context, the pressure roller from above located opposite the left spindle and moving with the left spindle offers significant advantages.

Learn more
