CombiScan Sense R: Ripping optimization with sense and purpose

WEINIG CombiScan Evo

In the R version of the CombiScan Sense, WEINIG has further increased the efficiency of its scanner technology for ripping applications. The two-dimensional optimization of the boards allows recovery to be significantly improved. Cross-cutting optimization is already predicted during the ripping optimization. Cross-cut scanners and rip scanners therefore work together in this instance.

With its enhanced 2D optimization, the CombiScan Sense R represents an outstanding upgrade for your rip saw. Optimization according to both width and end-product significantly improves ripping decisions. Manual, laser-controlled width optimization simply cannot compete with the potential of this system.

Simple optimization is the key to efficient production. The high-performance optimization software allows a variety of qualities and zones to be created and combined into multiple end products. The products and qualities are stored in a database and can be selected at any time via drag and drop. The logical user interface of the scanner simplifies settings in a visual way providing simple operation for all.

The sensor options are shared with the successful CombiScan Sense C, meaning that the CombiScan Sense R also has a wide range of sensors and options. Shape measurement and the random width module are factory-fitted as standard with the CombiScan Sense R. Owing to the nature of ripping, image detection and optimization are only performed on the top and bottom sides.

Prices
x

Different requirements - different prices

The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

The WEINIG CombiScan Sense series provides

  • Fast return on investment
  • Optimization of your products by value, utilization or production objective
  • Extensive statistical functions in real time
  • Compatible with all high-performance optimizing cross-cut saws, high-performance rip saws and sorting systems
  • Optional processing of random width boards in a single production run
  • Optionally upgradeable sensor concepts (x-ray technology, moisture measurement, shape measurement and much more)
  • Complete defect detection: Unprocessed edges, branches, tears, pith, resin pockets, blue/red rot...
  • Tested industrial sensor technology

The WEINIG CombiScan Sense R provides

  • Increased recovery since the detection accuracy of the scanner is far superior to manual cutting positioning
  • Increased recovery since two-dimensional optimization of the scanner can predict end-product optimization results
  • Reduced labor costs, since labor-intensive manual marking is dispensed with
  • Maximum productivity thanks to automated defect detection and optimization
  • More flexible production since many different qualities and products can be produced at the same time
  • Ability to control the quality of end products according to individual customers, etc.
  • Increased quality of end products

Technical Details

Ripping optimization explained simply

WEINIG CombiScan Evo
WEINIG CombiScan Evo
WEINIG CombiScan Evo

Step 1: LuxscanLine scanners are based upon various sensors, such as laser and color cameras or X-ray. Your WEINIG expert will define the right sensors and the best combination of these, harmonized with wood types, surface properties and customer requirements. Our objective is to achieve the best possible quality of information for the required application.

Step 2: Image processing is handled by the highly sophisticated OptiCore software. This detects and identifies defects as well as color deviations on the board. The ideally adapted sensor data ensures optimal data processing and defect detection.

Step 3: Optimization via the high-performance OptiCore software calculates the best solution during ripping. In doing so, it takes into account the various customer requests and requirements. Based upon the precise board data calculated during image processing, the board is optimized in accordance with customer requirements. This allows a virtually unlimited number of qualities and products to be defined. Thus, even complex products can be ideally optimized. This allows the creation of almost any type of end product.

CombiScan Sense R layout suggestions

The CombiScan Sense R is suitable for one or several rip saws.

The sensors: The key to success

WEINIG CombiScan Evo

All sensors are ideally protected by a dust-proof housing. Our laser cameras are installed in every system as standard sensors. With the fastest speed available on the market, these guarantee a high resolution and optimal results. Performance is continually improved via constant evolution of this industrial sensor system. This technology detects defects such as branches, pith, cracks, etc. A sophisticated laser system also reliably detects 3D surface defects, such as holes and rough edges of the wood.

In addition, color cameras improve the scanner's detection as standard. Higher resolutions, both in the longitudinal and transverse direction, detect color defects as well as cracks and insect holes more reliably than ever before. Different versions of the color camera ensure the ideal scanner performance for every application.

OptiLink: Ideal optimization via connected processes.

Using complex production processes has always been a difficult task. Linking various applications and production lines complicates the flow of information. OptiLink was developed to optimize production management by centralizing the information. With a single access point to all information, just-in-time production is no longer a complex challenge. OptiLink decreases operator errors and reduces the inventory of semi-finished goods. A further benefit is the quick and simple data management with regard to ERP systems. This even allows production of single-item batches thanks to sophisticated statistical functions. Although OptiLink was originally developed purely for linking cross-cut scanners and rip scanners, it is now possible to connect many other cutting-related machines.


Options for extension

WEINIG CombiScan Evo

Fiber analysis: Maximum cutting accuracy

An essential component of maximizing recovery and increasing value is a precise cutting position, particularly with finger jointed products. The "dual scatter" system comprising of a line laser and a dot laser enables this precision.

Learn more


WEINIG CombiScan Evo

X-ray sensor: Enhanced defect detection

X-ray systems are not only useful for rough-sawn or dirty surfaces, but also for wood species with wide color variations. Their primary benefit is that certain internal defects are detected from variations in their density.

Learn more


WEINIG CombiScan Evo

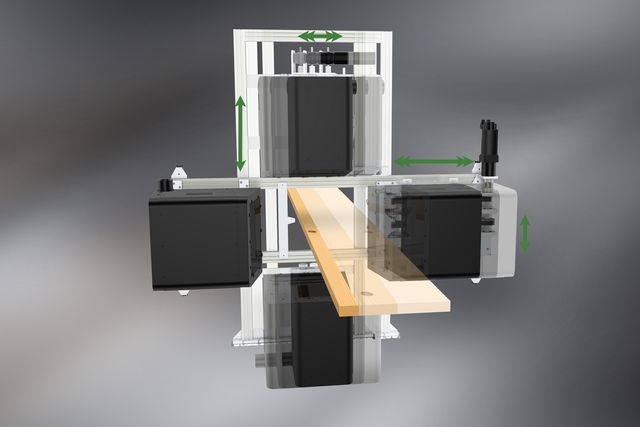

Automatic camera positioning and processing of random widths
